OE Number : 4231047100; 4235050000; 0544432010; BS3514; BS3602
Suitable for : BPW; SAF; DAIMLER; BENZ; DAF; IVECO; SCANIA

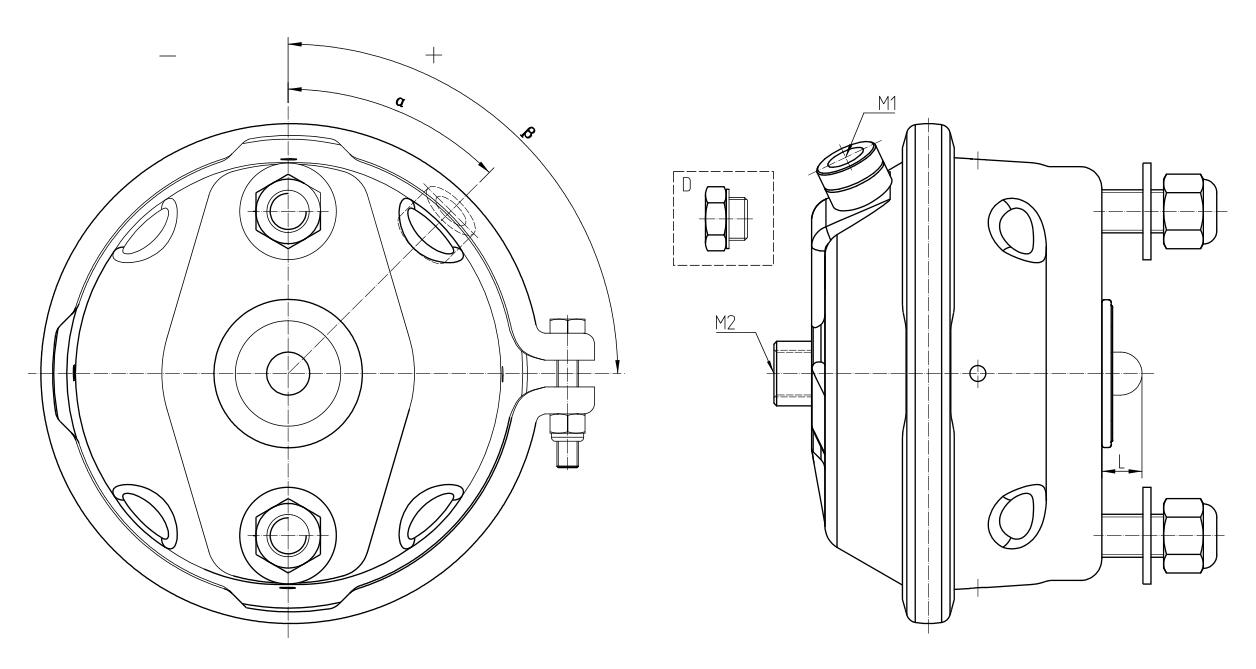

| TYPE | SD No. | Cross Ref No. | Ref No. | S STROKE | M1 side port | M2 centre port | α Port | β Clamp | L Length | Vehicle |
| 12P2 | SD01005D | BS3202-II37861 | ABRA302, 1402533 | 64 | M16*1.5 | M16*1.5 | 0 | 90 | 15 | DAF；IVECO |
| SD01005D01 | BS3201-II36967 | 4031955 | -45 | |||||||
| SD01005D04 | 4235030000 | 1392259 | M16*1.5+D | 180 | ||||||
| 14P2 | SD01006D | 4231147100 | 0544430020 0544430010 0203276800 0203276900 1505244 1932638 | 64 | M16*1.5 | M16*1.5+D | 0 | -20 | 15 | BPW DAF SCANIA |
| SD01006D02 | 4235140200 | 1373676 | 180 | DAF | ||||||
| SD01006D03 | BS3257-II36968 | 41031956 | M16*1.5 | 45 | ||||||
| 16P2 | SD01001D | 4231047100 | A0064205224 0074207424 0054202934 1505241 1932621 0203277000 0544432010 0544432020 3454106560 334652 505812866 AJV4526 | 64 | M16*1.5+D | M16*1.5 | 0 | -20 | 15 | BENZ;DAF;SCANIA; BPW;SAF;KOGEL; KRONE;FRUEHAUF |
| SD01001D01 | M16*1.5 | M16*1.5+D | 45 | 0 | ||||||
| SD01001D02 | 220090012 | M22*1.5（VOSS) | M22*1.5（VOSS) | |||||||
| SD01001D06 | 4235040300 | 68323850 20361830 | M16*1.5 | M16*1.5 | 90 | -45 | ||||
| 18P2 | SD01007D | BCD6001800 | 64 | M16*1.5 | M16*1.5+D | 45 | 0 | 15 | ||
| SD01007D01 | 4231127100 | 544433010 | 0 | -20 | ||||||
| SD01007D03 | BS3354-II36778 | 41031958 | M16*1.5 | 45 | ||||||
| 20P2 | SD01002D | 4235050000 | BK8503404 A0074201224 1517954 1932639 0203277500 0544434010 0544434020 3454106760 3454108260 4454106760 337900 | 64 | M16*1.5 | M16*1.5+D | 0 | -20 | 15 | BENZ;MAN;DAF; SAUER;KOGEL |
| SD01002D01 | 4235050040 | 718192 4454106700 | M16*1.5+D | M16*1.5 | 90 | -90 | ||||
| SD01002D10 | 4235051900 | M16*1.5 | M16*1.7+D | 150 | 90 | |||||
| SD01002D22 | 220090014 | M22*1.5VOSS | M22*1.5VOSS | 45 | 0 | |||||
| 22P2 | SD01008D | 4231107100 | 0544435010 0544435020 0203277700 0203277600 A0074201324 2121531 1932635 | 64 | M16*1.5 | M16*1.5+D | 0 | -20 | 15 | BPW;SAF;DAIMLER |
| SD01008D01 | 64 | M16*1.5 | M16*1.5+D | 45 | 0 | |||||
| SD01008D02 | BS3458-II36780 | 41031960 | M16*1.5 | 0 | 45 | |||||
| 24P2 | SD01003D | 4235060010 4235060070 | A0074201424 1517956 500590336 1932640 0203277800 0203277900 0544436010 0544436020 3454106960 337902 10218884 | 64 | M16*1.5 | M16*1.5+D | 0 | -20 | 15 | BENZ;DAF IVECO;SCANIA BPW;SAF/SAUER KOGEL;LIEBHERR |
| SD01003D08 | 718193 | M16*1.5+D | M16*1.5 | -45 | 0 | |||||
| SD01003D01 | 220090014 | M22*1.5VOSS | M22*1.5VOSS | 45 | ||||||
| SD01003D32 | BS3514 | M22*1.5VOSS | M12*1.5 | 30 | ||||||
| SD01003D33 | BS3515 | A0084201124 A0084206624 | -30 | |||||||
| SD01003D34 | BS3522 BS3516 | 0 | -90 | |||||||
| SD01003D81 | F-DB01 | Z3/8 | Z3/8 | 45 | 90 | |||||
| 27P2 | SD01010D | BCD6002700 | 64 | M16*1.5 | M16*1.5 | 45 | 0 | 15 | ||
| 30P2 | SD01004D | 64 | M16*1.5 | M16*1.5+D | 45 | 0 | 15 | |||
| SD01004D01 | BS3602 | A0084201824 A0064201824 | M22*1.5VOSS | M22*1.5 | 0 | -90 |
