OE Number : 4231047000; 4231067000; BS3536-II37133; 25PK0148E; BCM6201200
Suitable for : MERITOR; MAN; NEOPLAN

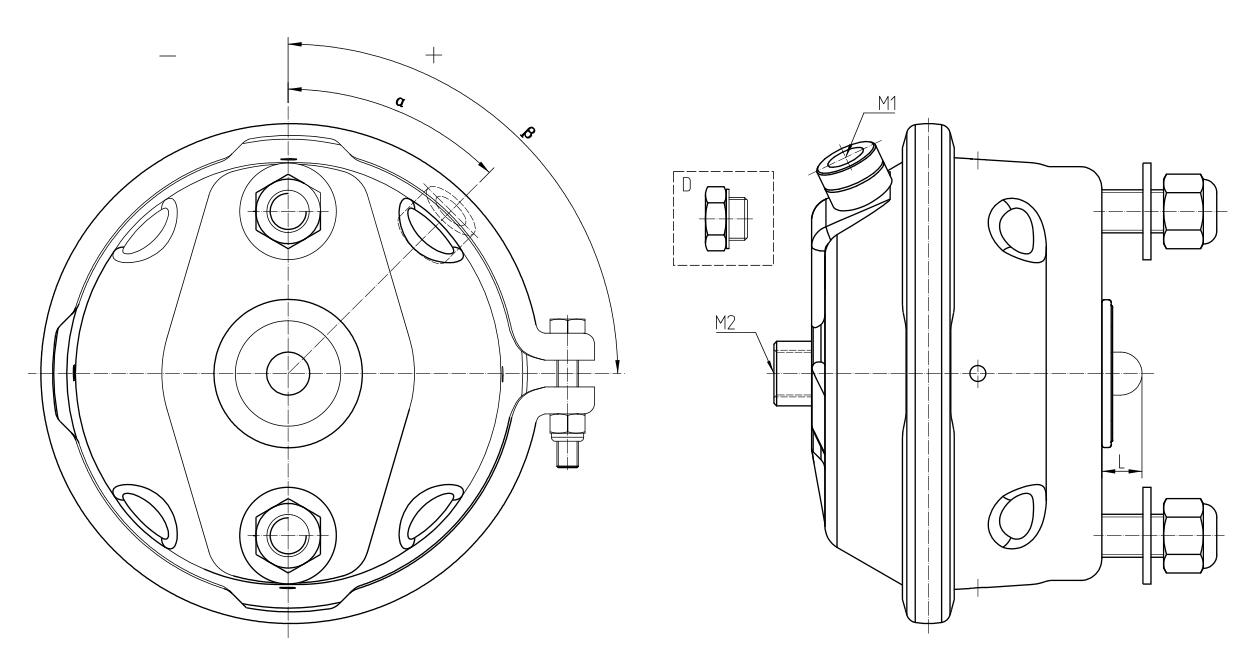

| TYPE | SD No. | Cross Ref No. | Ref No. | S STROKE | M1 side port | M2 centre port | α Port | β Clamp | L Length | Vehicle |
| 12PL1 | SD01015 | BCM6201200 | 75 | M16*1.5 | M16*1.5+D | 0 | 45 | 20 | MERITOR | |
| 14PL1 | SD01016 | 75 | M16*1.5 | / | 45 | 0 | 20 | |||
| 16PL1 | SD01011N01 | 4231047000 4231047110 | 75 | M22*1.5 | / | 90 | 180 | 26 | ||
| 20PL1 | SD01012N01 | 4231057010 | 75 | M22*1.5 | / | 90 | -167 | 20 | MAN,NEOPLAN | |
| 22PL1 | SD01018 | BCM6202200 | 75 | M16*1.5 | M16*1.5+D | 0 | -45 | 20 | ||
| 24PL1 | SD01013N | 75 | M22*1.5VOSS | / | 0 | 45 | 20 | |||
| SD01013N02 | 25PK0148E | M22*1.5 | 90 | -167 | 26 | |||||
| SD01013N36 | 4231067000 BS3536-II37133 | 81.99804-2092 | 0 | 90 | 20 | |||||
| 25PL1 | SD01009N01 | 4235110100 | 75 | M22*1.5 | / | -90 | 167 | 26 | ||
| 27PL1 | SD01020 | BCM6202700 | 75 | M16*1.5 | M16*1.5+D | 0 | 45 | 20 | ||
| 30PL1 | SD01014 | 75 | M16*1.5 | M16*1.5+D | 0 | 45 | 20 |
