OE Number : BS3313-K003840; 41211452; BS3538-K003170; M079021; 41227562
Suitable for : IEVCO; ROR; DAIMLER; GIGANT; EVOBUS

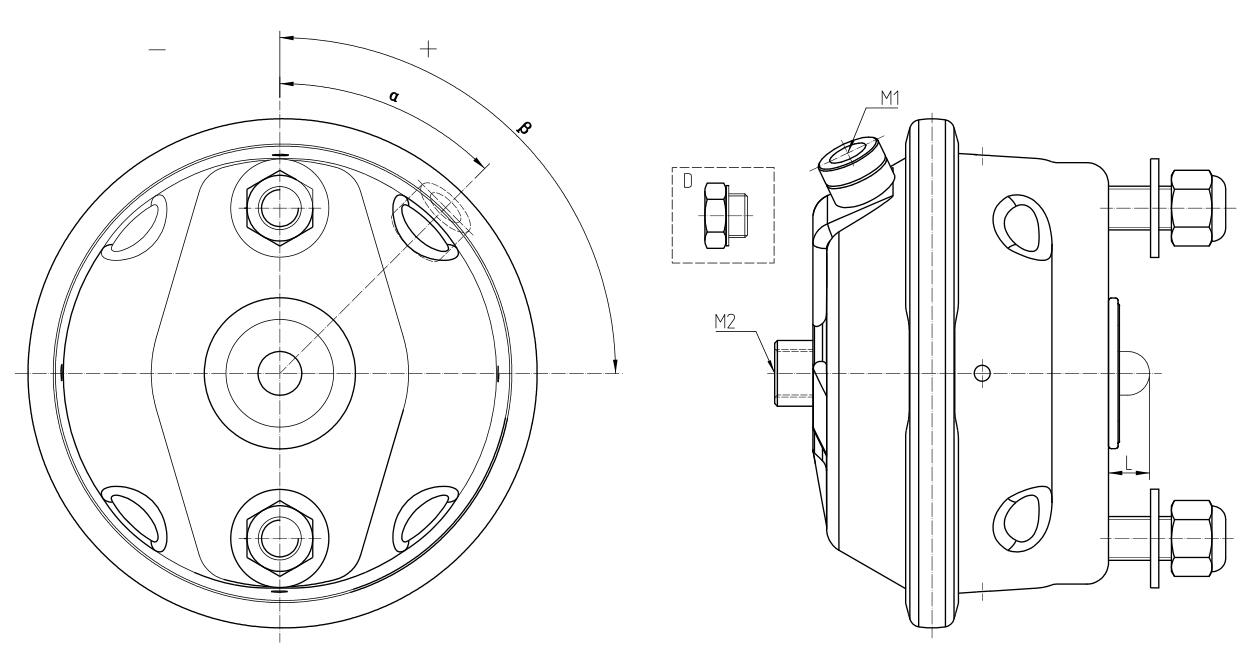

| TYPE | SD No. | Cross Ref No. | Ref No. | S STROKE | M1 side port | M2 centre port | α Port | β Clamp | L Length | Vehicle |
| 14PS | SD01006S | BS3263-K003979 41226793 | 64 | M16*1.5 | / | 0 | / | 15 | IEVCO;ROR | |
| 16PS | SD01001S | BS3313-K003840 | 41211452 | 64 | M16*1.5 | M16*1.5 | 0 | / | 15 | IEVCO |
| SD01001S01 | BS3327-K002618 | M079021 | M16*1.5+D | IEVCO,DAIMLER ,GIGANT | ||||||
| SD01001S02 | BS3314-KOO2978 | 501322277 | / | M16*1.5 | / | EVOBUS | ||||
| 22PS | SD01008S | BS3467-K003013 | 41211457 | 64 | M16*1.5 | M16*1.5 | 90 | / | 15 | |
| 24PS | SD01003S | BS3538-K003170 | 0501317567 | 64 | M16*1.5 | / | -90 | / | 15 | EVOBUS |
| Long Stroke: | ||||||||||
| 14PLS | SD01016S | 41227562 | 75 | M16*1.5 | / | 0 | / | 20 | ROR | |
| 16PLS | SD01011S | 41227564 | 75 | M16*1.5 | / | 0 | / | 20 | ROR |
