OE Number : 9254612700; 9254670020; 9254813280; 9254811080; 9254611600
Suitable for : VOLVO; DAF; MERITOR; RVI; RENAULT

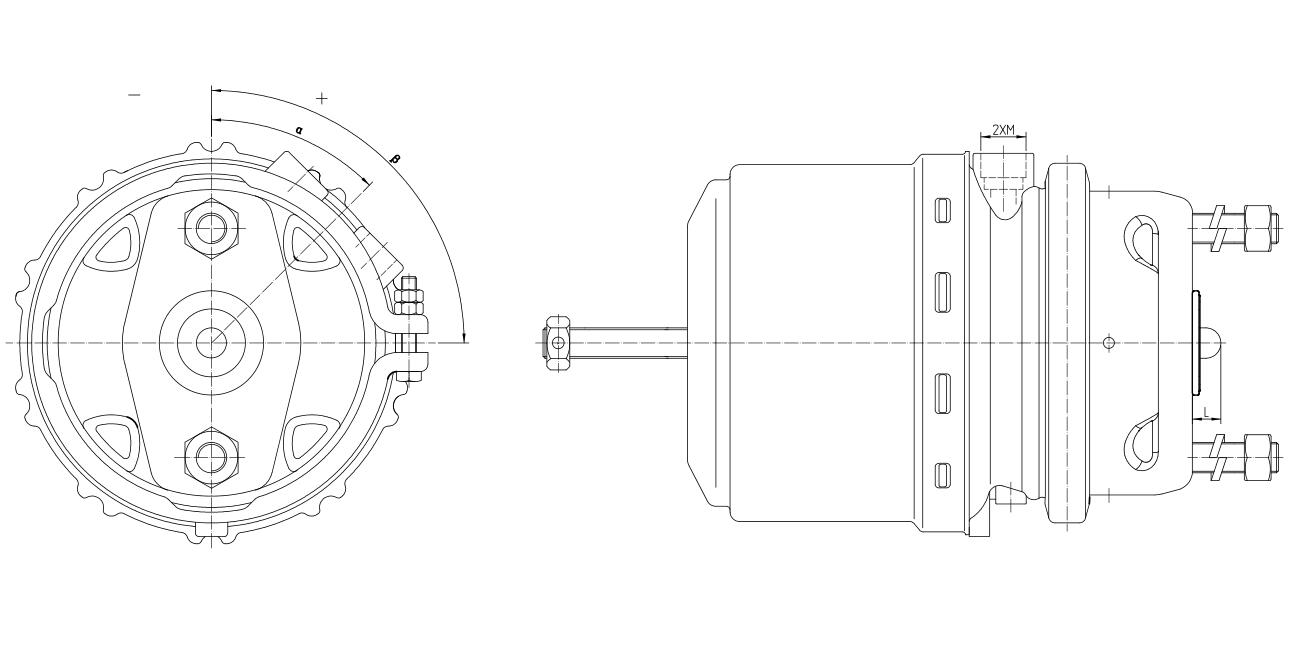

| TYPE | SD NUMBER | OE KNORR/WABCO | PART NUMBER | M | α | β | F | L | VEHICLE |
| Q24/16PC | SD06007C | 9254611910 | 20466077 | M16*1.5 | 0 | 45 | 7400 | 15 | VOLVO |
| SD06007CR | 9254611530 | 20466076 | |||||||
| Q22/24PC | SD06050C | 9254670020 9254670200 | 1524738 20361848 68323864 20361823 68323866 | M16*1.5 | 0 | 45 | 7900 | 15 | DAF VOLVO MERITOR |
| SD06050C03 | 9254670160 | 20401178 68324100 | -60 | VOLVO MERITOR | |||||
| SD06050C04 | 9254670170 | 20401179 68324101 | 60 | -45 | |||||
| Q24/24PC | SD06002CL | 9254612700 9254810040 9254613300 9254813600 9254813620 9254813640 9254810500 | 20401590 7421401943 21752714 21596227 7421596229 23486130 20522028 | M16 x 1.5 | 0 | 45 | 7900N | 15 | RVI |
| SD06002CR | 9254612710 9254810060 9254611310 9254813610 9254810510 9254813610 9254813630 9254813650 9254810510 9254613310 | 20401591 7421401944 20466073 20466073 20466073 21596226 7421596228 23486129 20522029 21752715 | RVI RENAULT MERITOR | ||||||
| SD06002C | 9254810327 9254810320 9254611010 | 8113459 85000253 85000466 3987614 20721845 20466070 | |||||||
| SD06002C03 | 9254810300 9254611020 | 20522030 20466071 | -60 | 45 | |||||
| SD06002C04 | 9254611030 9254810310 | 20466072 20522031 | 60 | -45 | |||||
| SD06002C05 | 9254810330 | 22273774 | -60 | -135 | |||||
| Q24/24PAC | SD07003C | 9254812900 | 21323797 | M16 x 1.5 | 0 | 180 | 8500 | 15 | |
| Q2424PC2 | SD06303C | 9254813400 | 21423487 | M16*1.5 | 0 | 45 | 7900 | 15 | VOLVO |
| SD06303C03 | 9254813280 9254813330 9254813300 9254813310 | 21326203 21326199 7421283616 7421326201 | 90 | -90 | VOLVO RENAULT | ||||
| SD06303C01 | 9254813260 | 21283629 | 60 | -45 | VOLVO | ||||
| Q24/24PC3 | SD06201C01 | 9254811080 9254811100 9254811150 9254811130 | 20742394 7420533213 20742393 7420573923 | M16*1.5 | 90 | -90 | 7800 | 15 | VOLVO RENAULT |
| SD06201C03 | 9254811170 9254811240 | 7420809444 20844352 | -90 | -45 | |||||
| Q24/30PC | SD06003C | 59188A | M22*1.5VOSS | 0 | 45 | 10800 | 15 | ||
| SD06003C02 | 9254810600 9254810610 9254614800 | 20524534 7422096431 20466074 | M16*1.5 | VOLVO RENAULT | |||||
| Q24/30PC2 | SD06304C | 9254813420 | 21283630 | M16*1.5 | 0 | 45 | 10800 | 15 | |
| SD06304C01 | 9254813480 9254810260 9254813450 | 21326194 21752601 7421283615 | 90 | -90 | |||||
| Q24/30PC3 | SD06202C | 9254611600 9254810700 9254810710 9254614720 | 20410136 20721842 7422096490 3197931 | M16*1.5 | 0 | 45 | 10800 | 15 | VOLVO RENAULT |
| SD06202C01 | 9254811000 | 20524536 | -60 | 45 | 10900 | ||||
| SD06202C03 | 9254811020 | 20527614 | -68 | 0 | |||||
| SD06202C05 | 9254811230 9254811200 | 20742391 20533193 7420533193 | 90 | -90 | 10800 | ||||
| SD06202C07 | 9254614700 | 3177337 | -90 | -135 |
